VV-2270 · Two bays
The double-bay wine room
Twice the racking behind a wall of glass. Put the door where it suits your room: at the left end, the right end, or in the middle with a window either side.
- Outside (W × H × D)2270 × 2300 × 1200 mm
- Racking2 solid walnut bays
- Holds176 bottles + 48 glasses

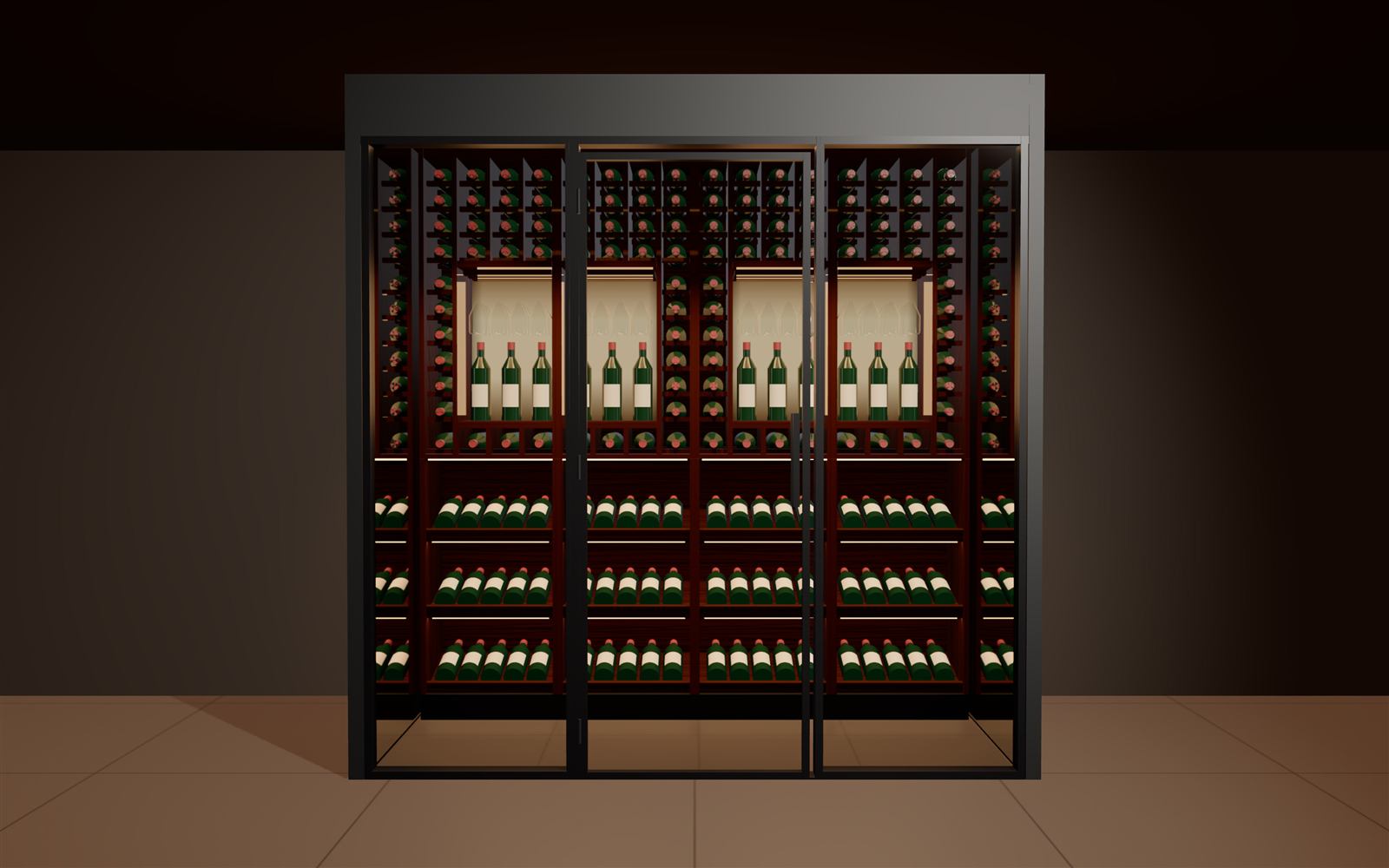

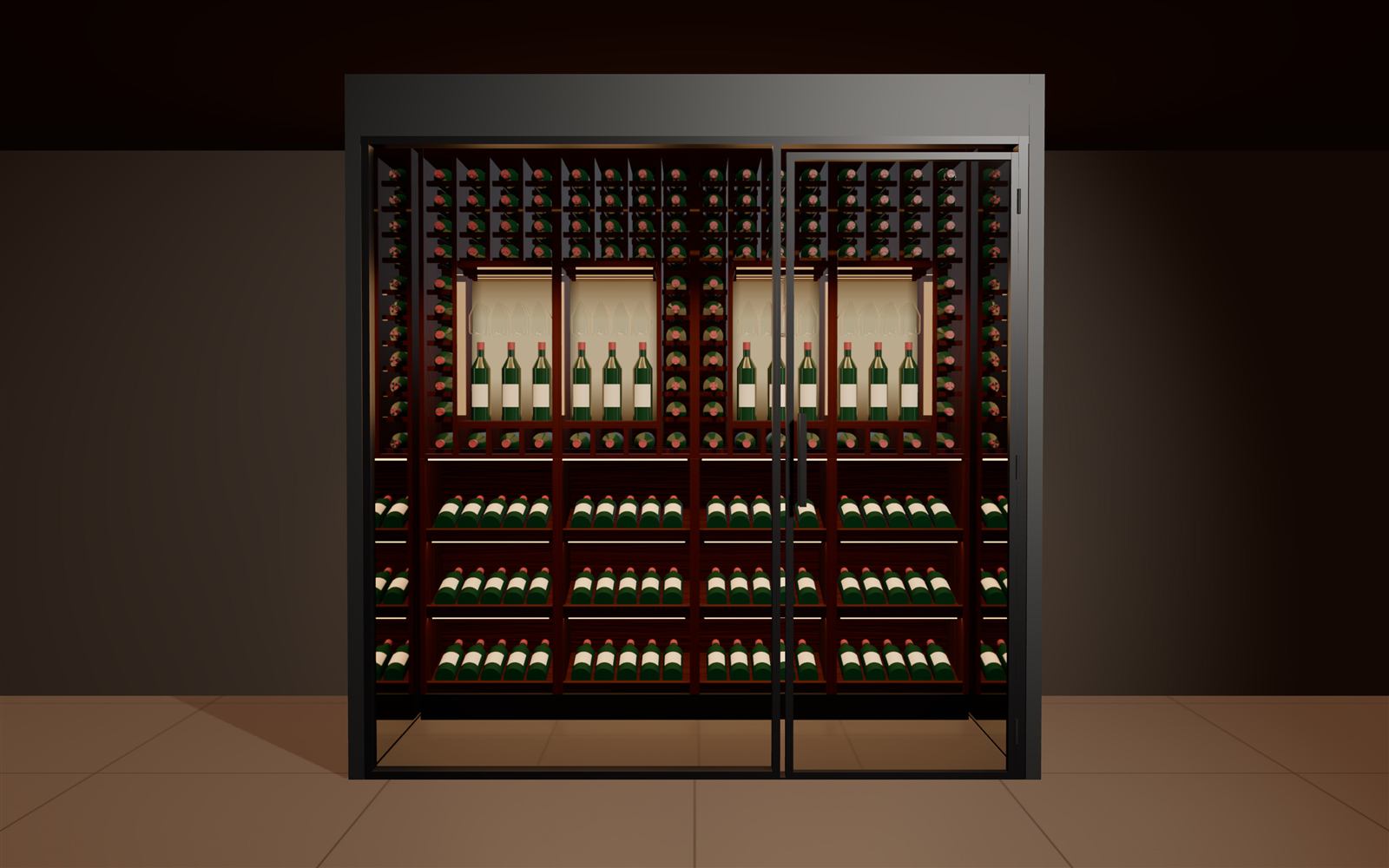

- FrontDoor left, right or centred
- PriceOn application
Three fronts
Put the door where it works.
Every front uses the same glass, frames and racking. Choose the one that suits how you walk into the room.
All the way round
See the VV-2270 from every side.
Inside the bays
176 bottles, every one on show.
Two bays of 19 mm solid walnut butt together along the back wall. Bottles in the cells rest on walnut runners that run front to back, so each one lies level on its body, from a slim flute to a Champagne.
- 60bottles on twelve tilted display shelves, labels up
- 104bottles in individual cells on solid walnut runners
- 12feature bottles standing in four backlit niches
- 48glasses hanging on rails above the niches
Built in
Everything a cellar needs, in one cabinet.
Cooling
A dedicated wine-cellar cooling unit sits in the roof over the walkway, flush with the ceiling. Plug and play once the room is in place.
Glass
27 mm low-E, argon-filled double glazing in heated frames on a dew-point controller, so the glass stays clear.
Insulation
50 mm polyurethane panels in the walls, roof and rear, and a 75 mm insulated floor.
Light
Warm 3000 K LED lighting and backlit display niches.
Mirror ends
Mirror stainless steel on both ends carries the racking on, so the room feels larger than it is.
Made here
Built in our Carole Park factory by the team that makes glass doors and refrigeration for Australia's major liquor retailers.
Other sizes
The rest of the range.
Price on application
Interested in the VV-2270?
Tell us where it's going and which front you prefer, and we'll send you a proposal with drawings and pricing.
